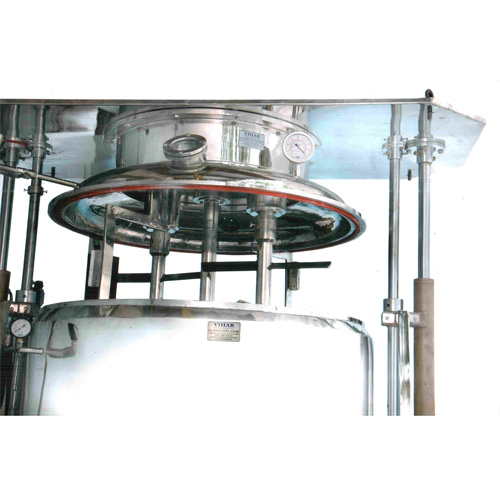

Vacuum type planetary mixers
are designed for mixing
ointments, paste, wet mass, cream and dry powders.

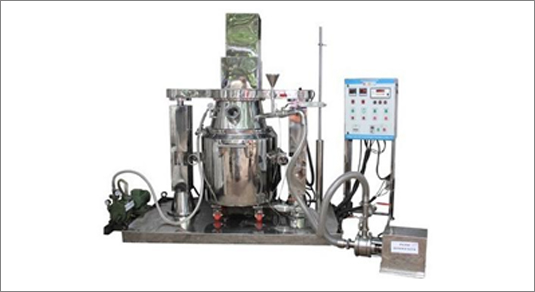

Vertical, Cylindrical, Jacketed. Agitators rotating in a planetary fashion.
It has Teflon Scrapers for the sides and bottom.
Vessel with Dish end Bottom, bottom outlet.
The Gear Box & Motor are fitted on the Top lid of the vessel.
The Top is lifted up & down with the help of 2 nos Hydraulic cylinders provided
on each side of the Vessel.
Heaters provided in the jacket.
Dimension with Specifications:
The Agitator is driven by motor 1500 RPM, 3PH, 415V, 50 HZ, AC motor & Gear Box.
AC Frequency Drive is provided to control the stirrer RPM - Max RPM of Stirrer 50 RPM.
- Vessel Shell: a) Side top inlet for Hot wax & Hot Water.
- b) Bottom Outlet
- Top of the Vessel: a) Inlet from Inline Homogenizer with funnel for extra additions.
- b) Vacuum Gauge
- c) Nozzle for Vacuum Line
- d) Extra Nozzle
- Jacket: a) Water Inlet
- b) Water Outlet
- c) Thermo couple for Jacket Temperature
- d) Pressure gauge, safety Valve
- e) Drain
The complete assembly of the Planetary Mixer with the Hyd. Cylinders is mounted on a
M.S. Channel Base Frame cladded with S.S. 304 for perfect assembly and easy transportation
without disturbing the alignment.
