Home » Tube Filling Machine

Tube Filling Machine

Vihar Engineering


Specifications :
Plastic & Lami Aluminum
Output 35 to 40 Tube/per Min
Filling Range 3 gm to 150 gm
Tube Diameter 10 mm to 40 mm
Operator one
Power Consumption 5 kw
Air Pressure 6 to 7 kg
Net Weight 450
Gross weight 555
Dimension 38"Lx36"Wx72"H


Yes! I am Interested

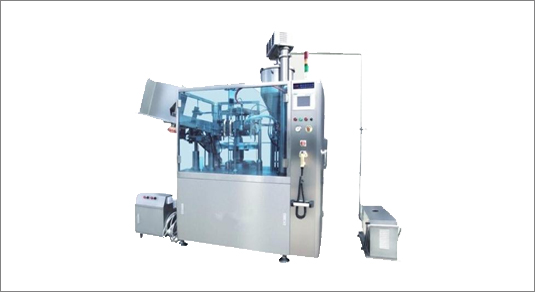

Laminated Tube Filling Machine with Sealing, Cutting and Batch Coding

Laminated Tube Filling Machine with Sealing, Cutting and Batch Coding

Laminated Tube Filling Machine with Sealing, Cutting and Batch Coding,
Our range of Laminated Tube Filling Machines have a syringe pump housing and rotary piston filling device that has a blow off device pneumatic tail cut-off system. These machines have a high filling speed of 40 to 50 tubes per minutes and jacketed hopper single head type of capacity of 40 liters. These tube filling machines are provided with stainless steel spring loaded change part 12 nos. nylon holders one tube size. These machines are also equipped with temperature controller with 3 KW SS tubular heater. Our range of machines have a label sensor and controller and various optional accessories like vacuum cleaning, jacketed hopper with stirrer, product level sensor in filling hopper with pump controller, automatic cassette loader to load the tubes and orientation sensors with stepper motor.

Features
  • A Fully Automatic Lami/Plastic Tube Filling machine, with have high operating speed and 12 Stations compact rotar.
  • Model - GMP Capable to fills from 40-300ml
  • Its contact parts are manufactured using quality stainless steel of grades 316
  • These machines are no tube - no fill device, with a bottom up filling system and filling accuracy +/ - 0.1%.
  • These machines have a tube diameter of 16-60mm and height 60-258mm
  • The tube holding Cup is manufactured using quality stainless steel of grade 304.
  • 8. Manifold cam indexing device Make Camfield.
  • Geared Motor 0.5 HP, RPM-40 REMI make
  • Belt Less Stirrer Device with augur to keep the product in Continuous homogeneous condition.
Technical Specifications

Filling Station: These machines consist of a hopper of capacity 40kg. with cut off valve that is connected to the filling cylinder which also has a capacity adjusting arrangement. The delivery nozzle is provided with special pneumatic cut off system to prevent dripping.

Sealing System: This system comprises of a pre heating station and a sealing station.

Heating Station: This station is compressed with hot air is blown to pre- heat the sealing area . The compressor air is then heated in a chamber that is fitted with a hot air tool leister. The Pneumatic regulator is provided to control the air pressure and a temperature controller to control the heat.

Sealing Station : This station is pneumatically operated and special jaws seal the tube. Batch coding is done at this station.

Trimming Station: The uneven end is trimmed at this station .

Batch-Coding Station :Batch coding is provided at the Sealing station.

Ejection: The tubes are automatically ejected at this station

Output: 1500-1800 tubes per hour single head

Electrical: The machine is fitted with 1 Hp motor that is 1440 rpm Hindustan make along with 30:1 ratio gear box, electrical panel box and a no tube, no fill process is also provided.

Note: An air compressor of 3Hp is required.

Dimensions : L 1330mm x W 920mm x H 1850mm

Yes! I am Interested

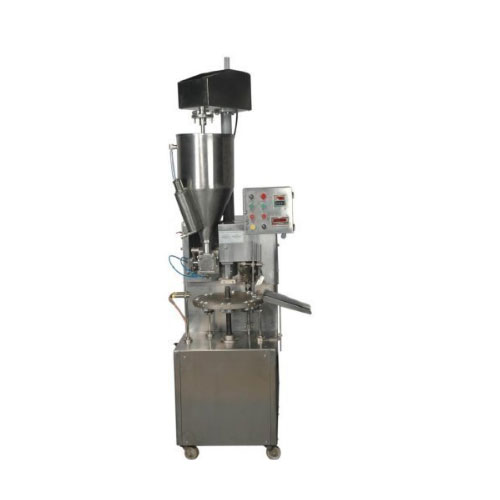

Aluminium Tube Filling, Crimping & Batch Coding Machine

Aluminium Tube Filling, Crimping & Batch Coding Machine

Aluminum Tube filling Crimping, & Batch-coding Machine is sturdy and compact in design and is simple to operate. Fitted with a non-return valve below the Stainless Steel main filling block, these machines consists of an aluminum-rotating disc that has an interchangeable tube holding sockets for different tube sizes. The 1st and 2nd station are for feeding of tubes, the 3rd Station is for Vacuum Cleaning and the 4th Station Empty.

Features
  • These tube filling machines have a sturdy and compact design and are simple in operation
  • The Rotating Disc of these crimping and batch- coding machines is available with interchangeable sockets for different sizes
  • They have a no tube, no fill arrangement
  • These machines have a stainless steel hopper of 25kg capacity
  • Out put 1500 to 1800 tubes per hour single head

Yes! I am Interested

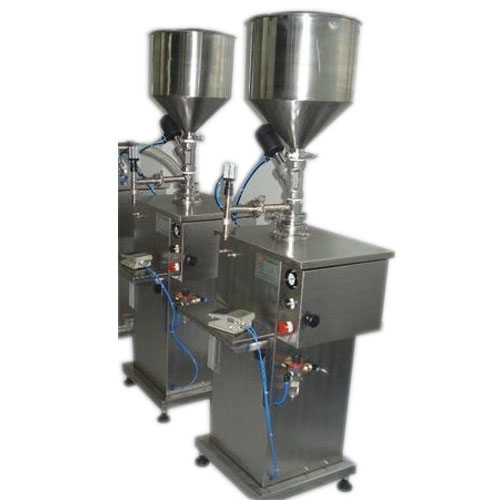

Ointment Filling Machine

Ointment and Cream Filling Machine

We offer superior quality Cream Filling and Ointment filling machines that are manufactured using medical grade of steel and designed to perfection. These machines have semi-automatic piston type rational in design and are small & exquisite in model. The pneumatic part of the machine adopts the pneumatic components of Germany FESTO and Taiwan Airtac. Our range of cream and ointment filling machines are renowned to provide hassle free performance in a cost effective operations.

Features:
  • The contacting parts of the machines are made using 316L grade of stainless steel
  • Filling head use anti-leakage and lifting filling device
  • The filling volume and filling speed can be adjusted as required
  • The filling accuracy rate is high.
Specifications:
  • Power Supply :220/110V 50/60Hz
  • Filling Speed : 5-20 Bottles/min/head
  • Filling Accuracy: <=±1%
  • Air Pressure : 0.4-0.6MPa
  • Filling Range : 25-60ml 50-125 ml 100-250 ml 200-500 ml

Yes! I am Interested

Specifications :

Plastic & Lami Aluminum
Output 35 to 40 Tube/per Min
Filling Range 3 gm to 150 gm
Tube Diameter 10 mm to 40 mm
Operator one
Power Consumption 5 kw
Air Pressure 6 to 7 kg
Net Weight 450
Gross weight 555
Dimension 38"Lx36"Wx72"H
